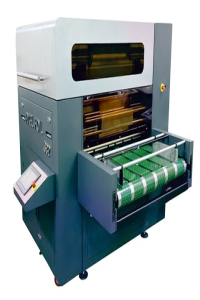

MONOTECH PixelFoil S32 Digital Screen Foiling System

• Screen UV height: 10 microns to 100 microns • Foil on the foil • Hot foil along with the heater • Cold Foil with UV LED • Foil saving feature • In-line Multiple foiling systems • Cast & Cure

Usage

Pixelfoil is an add-on module that operates in tandem with the Screen Varnish Machine, providing unparalleled foil enhancement functionalities. It uses an advanced and efficient digital process to produce high-gloss foil with a range of densities suitable for medium and long production runs. Pixelfoil leverages a diverse array of industry-standard hot and cold foils and films, as well as substrates that encompass offset, digital, plastic, laminated, non-laminated, coated, and uncoated materials. Applications for Pixelfoil include but are not limited to, business and greeting cards, folders, book covers, brochures, labels, and packaging. Benefits COST EFFECTIVE Replaces the conventional analogue method, eliminating the need for dies, plates, moulds and other costly materials; make-ready incomparable cost savings for short to medium. HIGH QUALITY High Quality – Pixelfoil delivers superior foil enhancement print with ultra-ne details, high gloss, surface coverage and awless registration; high-end print quality is achieved via a robust and reliable automatic process with a high production yield. Digital – quick, efficient, easy-to-use process provides customers with a fast turnaround time to meet and exceed their needs IN-HOUSE Manage and control your foil enhancement applications, prot from rapid time to make a response, be independent from 3rd party suppliers and keep your print jobs confidential by not exposing them to other PSPs Screen shine varnish enables the screen printers to do the value edition of the foil

Features & Specifications

Technical Specification:

Model

PixelFoil Screen 32

Max. Sheet Width

812.8 mm (32 Inches)

Max. Speed

30mtr/min*

Compressed Air

8 bar/14CFM

NIP Roller Temperature

50 to 120˚C.
