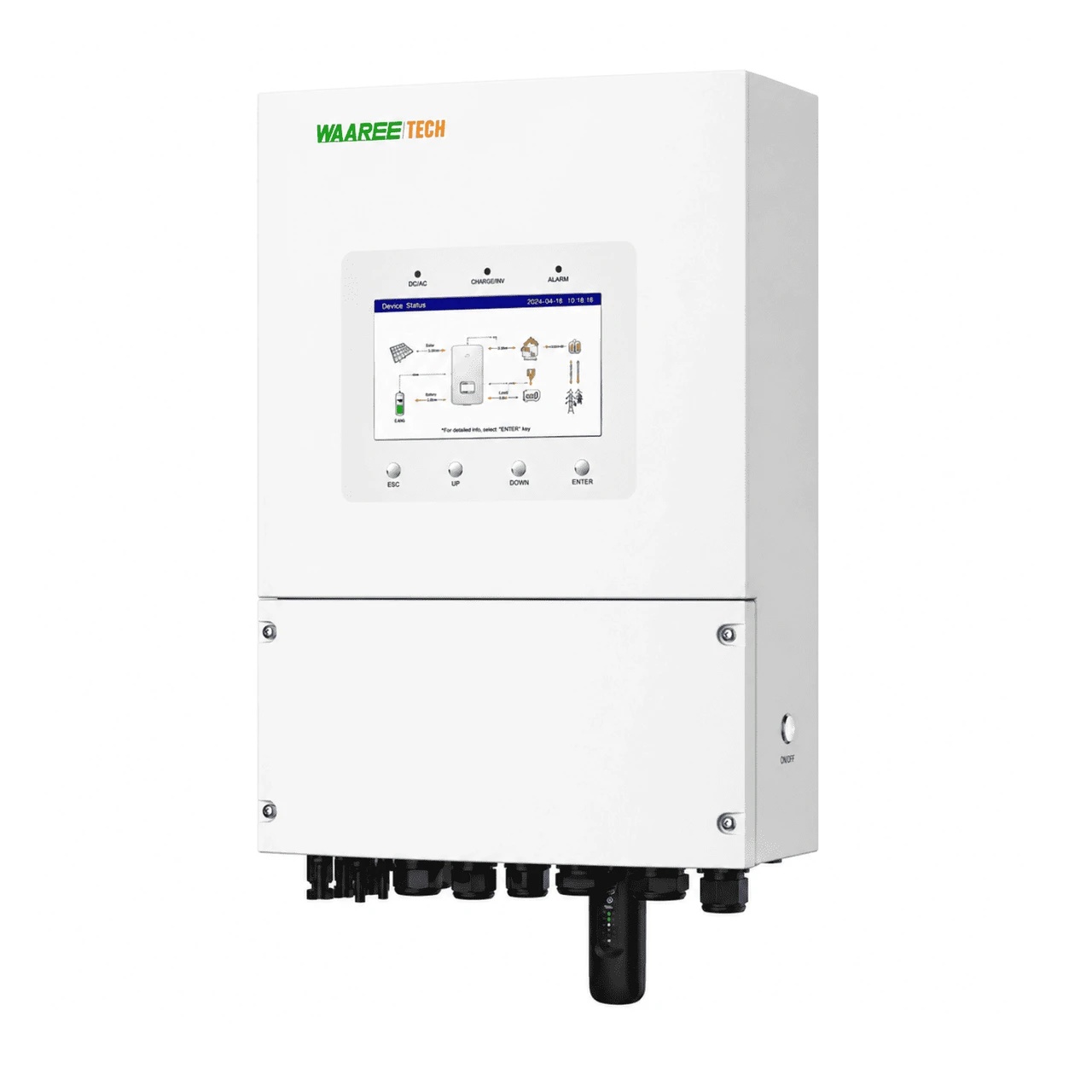

WAAREE Single Phase Hybrid Inverter Range WESLV1P - 5K

Engineered for modern homes and businesses, the Waaree Single-Phase Hybrid Inverter delivers intelligent energy management and reliable backup power. Designed to seamlessly integrate with solar panels, batteries, the utility grid, and generators, it ensures uninterrupted power supply, exceptional efficiency, and stable performance under all operating conditions.

Usage

The Waaree Single-Phase Hybrid Inverter features generator compatibility for extended backup, microgrid-ready parallel operation, ultra-fast switchover in under 4 ms, dual backup outputs for optimized load management, 200% overload capacity to handle startup surges, and a stable power supply that protects connected loads from voltage fluctuations.

Features & Specifications

Input DC (PV Side) Specifications

Recommended Max. PV array size

10 kW

Max. usable PV input power

8 kW

Max. input voltage

500 V

Rated voltage

300 V

Start-up voltage

90 V

MPPT voltage range

90 V - 435 V

Max. input current

16 A/ 16 A

Max. short circuit current

20 A/ 20 A

MPPT number/Max. input strings number

2/2

Battery Specifications

Battery type

Li-ion / Lead-acid

Battery voltage range

40 V - 60 V

Max. charge/discharge power

5 kW

Max. charge/discharge current

112 A

Communication

CAN/ RS 485

Output AC (Grid side) Specifications

Rated output power

5 kW

Max. apparent output power

5 kVA

Operation phase

L/N/PE

Rated grid voltage

220 V/ 230 V

Rated grid frequency

50 Hz/ 60 Hz

Rated grid output current

22.8 A/ 21.8 A

Max. output current

22.8 A/ 21.8 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDI

<2%

Input AC (Grid side) Specifications

Input voltage range

187 V - 253 V

Max. input current

32 A

Frequency range

45-55Hz / 55-65 Hz

Output AC (Back-up) Specifications

Rated output power

5 kW

Max. apparent output power

2 times of rated power, 10s

Back-up switch time

<4 ms

Rated output voltage

L/N/PE, 220 V/ 230 V

Rated frequency

50 Hz / 60 Hz

Rated output current

22.8 A/ 21.8 A

Max. AC pass—through current

40 A

THDV (@linear load)

<2%

Efficiency Specifications

Max. efficiency

96.20%

EU efficiency

96.10%

BAT charged by PV/AC Max. efficiency

95.3%/ 93.9%

BAT discharged to AC Max. efficiency

93.80%

Protection Specifications

Ground fault monitoring

Yes

Residual current detection

Yes

DC reverse-polarity protection

Yes

Integrated AFCI 2.0

Optional

Protection class/Over voltage category

I/II (PV and BAT), III (MAINS and BACKUP and GEN)

General Data Specifications

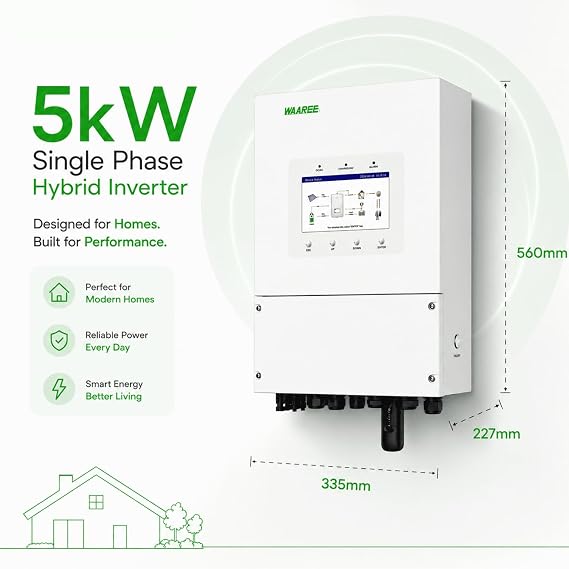

Dimensions (WxHxD)

335mm x 560mm x 227mm

Weight

21.6 Kg

Topology

High frequency isolation (for battery)

Operating ambient temperature range

-40~+60°C

Ingress protection

IP66 IP66

Cooling concept

Natural cooling

Max. operation altitude

3000 m

Grid connection standard

NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA NBR 16149, NBR 16150

Safety/EMC standard

IEC/EN 62109 -1 /-2, EN 61000 -6 -2/-3

Features Specifications

DC connection

Communication

AC connection

Terminal Block

Display

7.0" LCD display & Bluetooth + APP

Communication

RS485, CAN, Optional: S3-WiFi-ST, S3GRPS-ST, LAN

NRE1002

WAAREE

Single Phase Hybrid Inverter Range - WESLV1P - 5K

Rated voltage 300 V

THDI <2%

Weight 21.6 Kg
