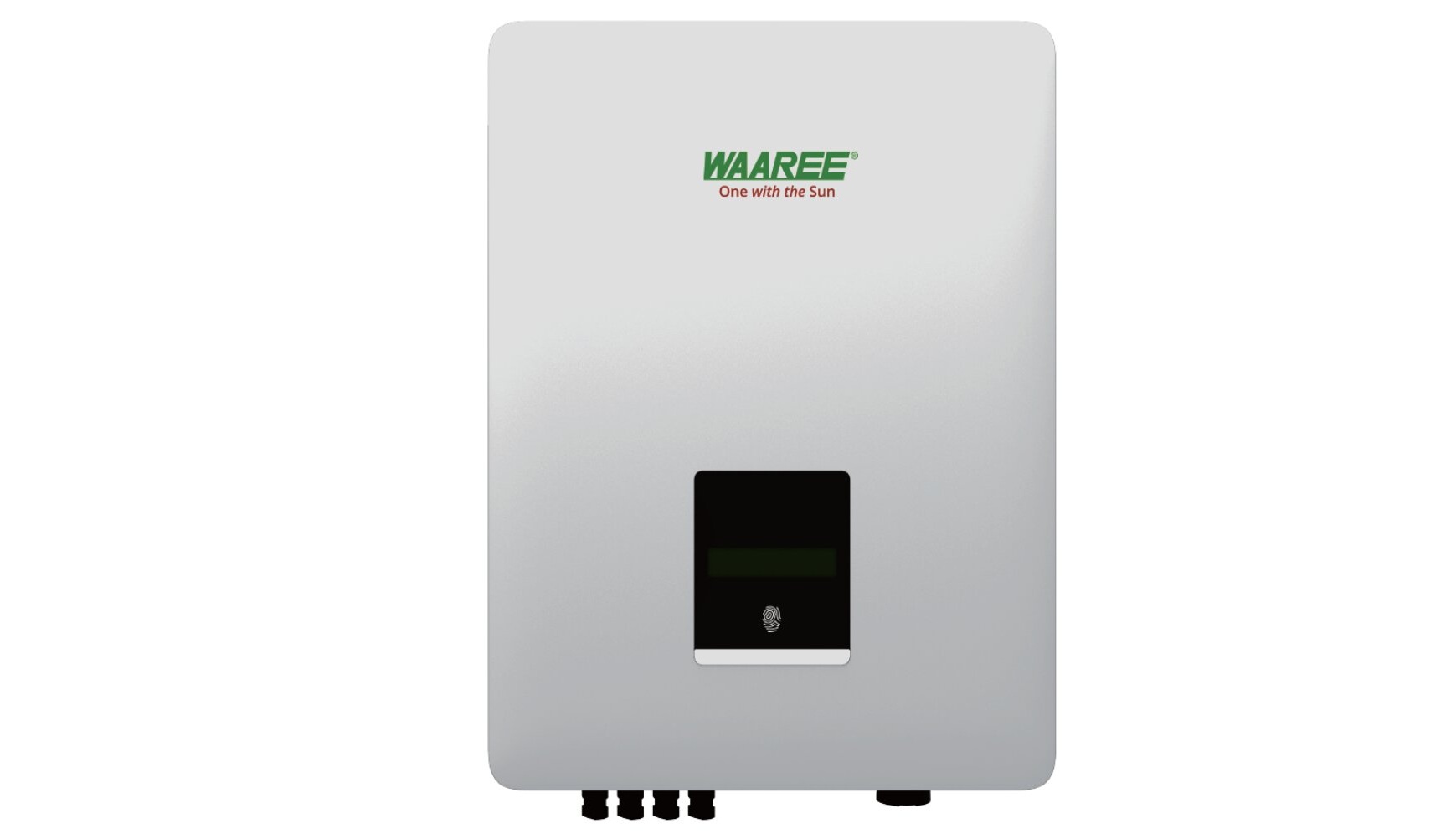

WAAREE Three Phase Hybrid Inverter Range WESLV3P - 15k

Built for demanding power requirements, this advanced three-phase hybrid inverter delivers reliable and uninterrupted energy management for residential, commercial, and industrial applications. Featuring intelligent backup functionality, high photovoltaic (PV) compatibility, and microgrid support, the inverter ensures optimal performance, energy efficiency, and system stability.

Usage

This three-phase hybrid inverter is built to deliver reliable and uninterrupted power by seamlessly integrating solar, battery, grid, and generator sources. It supports microgrid applications with multiple inverter connectivity, intelligently manages critical and non-critical loads through dual backup ports, handles high startup loads with 200% overload capability, and maximizes solar energy utilization through high PV input compatibility and high battery throughput. Its exceptional power stability ensures smooth operation even with weak grids or generator fluctuations, while advanced load handling supports unbalanced and half-wave loads for enhanced flexibility and performance.

Features & Specifications

Input DC (PV Side) Specifications

Max. usable PV input power

24 kW

Max. input voltage

1000 V

Rated voltage

550 V

Start-up voltage

160 V

MPPT voltage range

200 V - 850 V

Max. input current

40 A/ 40 A

Max. short circuit current

50 A/ 50 A

MPPT number/Max. input strings number

2/4

Battery Specifications

Battery type

Li-ion

Battery voltage range

40 V - 60 V

Max. charge/discharge current

290 A

Communication

CAN/ RS485

Output AC (Grid side) Specifications

Rated output power

15 kW

Max. apparent output power

15 kVA

Operation phase

15 kVA

Rated grid voltage

380 V/ 400 V

Rated grid frequency

50 Hz/ 60 Hz

Rated grid output current

22.8 A/ 21.7 A

Max. output current

22.8 A/ 21.7 A

Power factor

>0.99 (0.8 leading - 0.8 lagging)

THDI

<3%

Input AC (Grid side) Specifications

Input voltage range

323 V - 460 V

Max. input current

34.2 A/32.5 A

Frequency range

45-55Hz / 55-65 Hz

Input Generator Specifications

Max. input power

15 kW

Max. input current

22.8 A

Rated input voltage

3/N/PE, 380 V/ 400 V

Rated input frequency

50 Hz/ 60 Hz

Output AC (Back-up) Specifications

Rated output power

15 kW

Max. apparent output power

2 times of rated power, 10s

Back-up switch time

<10 ms

Rated output voltage

3/N/PE, 380 V/ 400 V

Rated frequency

50 Hz / 60 Hz

Rated output current

22.8 A/ 21.7 A

Max. AC pass—through current

22.8 A

Max. continuous AC passthrough current

50 A

THDV (@linear load)

<3%

Efficiency Specifications

Max. efficiency

97.60%

EU efficiency

97.00%

Protection Specifications

Anti-islanding protection

Yes

Insulation resistance monitoring

Yes

Output over current protection

Yes

Short circuit protection

Yes

DC reverse-polarity protection

Yes

Surge protection

Yes

General Data Specifications

Dimensions (WxHxD)

430mm x 660mm x 305mm

Weight

42 Kg

Topology

Non-isolated

Operating ambient temperature range

-40~+60°C

Ingress protection

IP66

Noise emission (typical)

<65 dB (A)

Cooling concept

Intelligent fan-cooling

Max. operation altitude

4000 m

Grid connection standard

NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, EN 50438L, PEA, MEA

Safety/EMC standard

IEC/EN 62109 -1 /-2, IEC/ EN 61000 -6 -1/-3

Features Specifications

DC connection

MC4 quick connection plug (PV) & screw terminal (Battery)

AC connection

Screw Terminal

Display

7.0" LCD display & Bluetooth + APP

Communication

CAN, RS485, Ethernet, Optional: S3-WiFi-ST, Cellular, LAN

NRE1008

WAAREE

Three Phase Hybrid Inverter Range - WESLV3P - 15k

Rated voltage 550 V

Rated output power 15 kW

Weight 42 Kg
